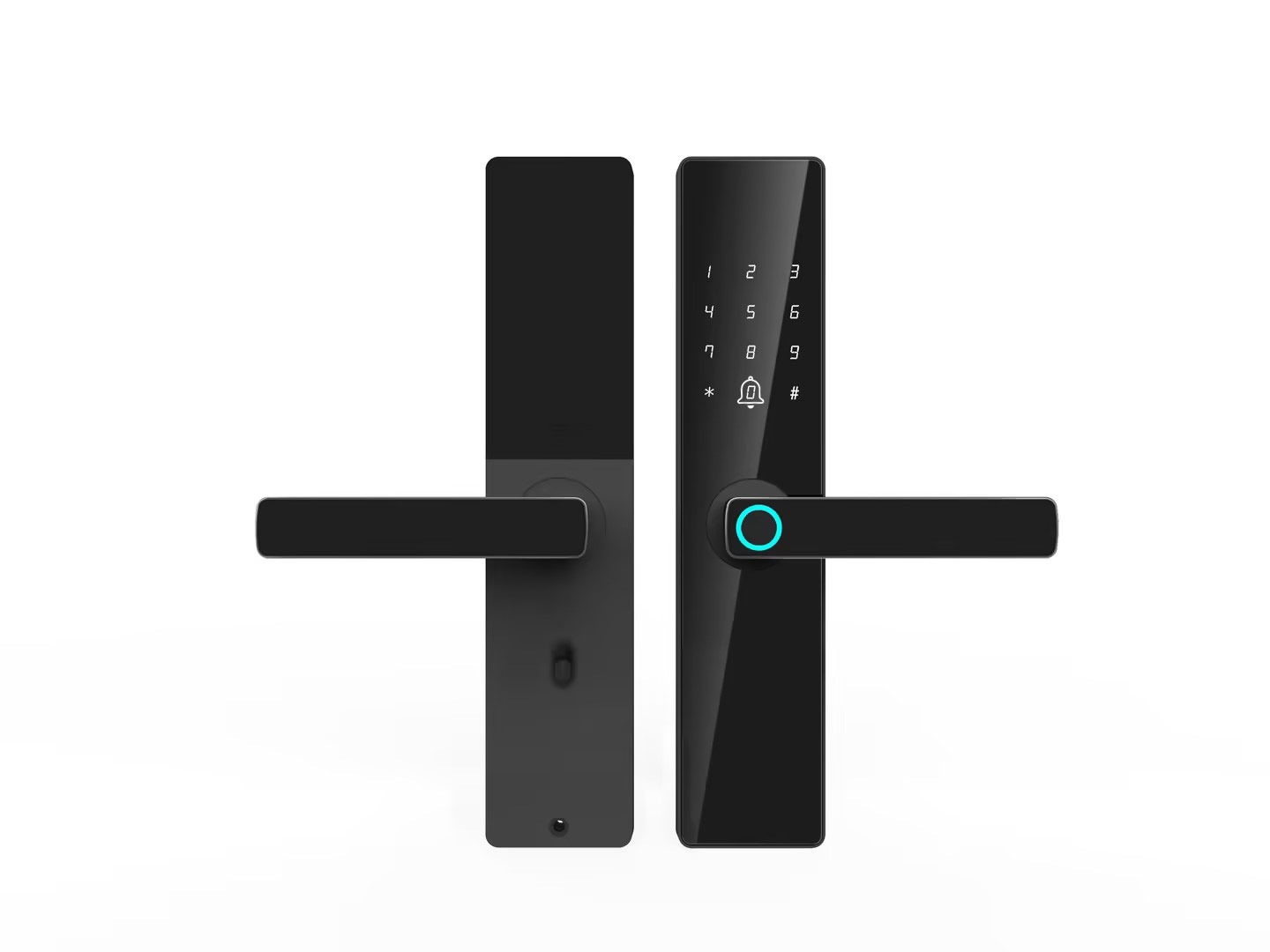

ShieldX WiFi Fingerprint Door Lock Tuya App – 6 Unlock Options SI-A06
Product Details & Description
The Smart Door Lock SI-A06 combines smart access technology with durable hardware design. It features fingerprint recognition, touch keypad, IC card support, and mechanical emergency key access for flexible unlocking options.
The lock supports up to 200 users, stores up to 500 door opening records, and includes security features such as virtual password support, tamper alarm, and automatic locking after five consecutive incorrect password attempts.
With support for multiple lock body specifications and door thickness from 35–65mm, this smart lock is suitable for different door installation requirements.
Key Features
|
Feature |
Specification
/ Description |
|
Unlocking Methods |
Fingerprint, PIN Password, IC
Card, Mechanical Key, Temporary PIN |
|
Lock Housing |
Aluminum Alloy |
|
Touch Panel |
Electroplated Tempered Glass |
|
Finish |
Premium Black Finish |
|
User Capacity |
Up to 200 Users |
|
Door Opening Records |
Up to 500 Records |
|
Password Length |
6–12 Digits |
|
Virtual Password |
Supported — protects password
security |
|
Tamper Alarm |
Supported |
|
Incorrect Password Protection |
Automatic system lock after 5
consecutive incorrect password entries |
|
Interior Deadbolt |
Electronic Interior Deadbolt
Function |
|
Handle Design |
Free-floating Handle |
|
Handle Direction |
Left & Right Handle Direction
Compatible |
|
Emergency Unlocking |
Mechanical Key + DC 5V Type-C
Emergency Power Supply |
|
Quick Open |
Supported |
|
Lock Body Compatibility |
Supports multiple lock body
specifications |
Technical Specifications
|
Parameter |
Specification |
|
Product Name |
Door Lock |
|
Model |
SI-A06 |
|
Lock Housing Material |
Aluminum Alloy |
|
Touch Panel Material |
Electroplated Tempered Glass |
|
Color |
Electroplated Black |
|
Surface Treatment |
Screen Printing + Powder Coating |
|
Power Supply |
4 × AA Batteries / 4 × 1.5V Dry
Cell Batteries |
|
Suitable Door Thickness |
35–65 mm |
|
Extension Kit |
Available upon request |
|
Front Dimensions |
375 × 70 × 75 mm |
|
Rear Dimensions |
375 × 75 × 75 mm |
|
Opening Methods |
Fingerprint / PIN / Card Swipe /
Key / Temporary PIN |
|
Handle Method |
Free-floating Handle |
|
PCB Solution |
ZhiYiXin (Multilingual) |
|
System Language |
Chinese / English / Multilingual |
|
Fingerprint Reader |
Chiiichi |
|
Card Type |
IC Card |
|
Operating Voltage |
DC 4.2V–6.0V |
|
Emergency Power |
DC 5V Type-C Port |
|
Low Voltage Alarm |
≤ 4.8V |
|
Static Current |
≤ 100 μA |
|
Dynamic Current |
≤ 2A |
|
DC Motor |
Independently Developed |
|
Operating Temperature |
-25°C to +70°C |
|
Operating Humidity |
20%–90% RH |
|
User Capacity |
200 Users |
|
Password Length |
6–12 Digits |
|
Fingerprint False Negative Rate |
< 0.1% |
|
Fingerprint False Recognition Rate |
< 0.005% |
|
Battery Life |
Normal continuous operation for
1000 cycles |
|
Handle Lifespan |
≥ 100,000 Times |
|
Door Opening Log |
500 Records |
|
Lock Body Type Support |
50 Series; 85 Series (4085 and
above); 72 Series; 68/24×240 Lock Body; Turkey 6085 Lock Body; 4558 Lock Body |
Package Includes
🔗 1 × Smart Door Lock SI-A06
🔗 Lock Body Assembly
🔗 2 × Mechanical Keys
🔗 IC Cards
🔗 Installation Accessories
🔗 User Manual
🔗 Batteries
Delivery & Warranty
Delivery
📌 Product will be securely packed before shipment.
📌 Each unit will be checked before delivery.
📌 Delivery time depends on destination and shipping method.
📌 Installation requirements should be confirmed before purchase.
Warranty
🔨 Warranty service applies to manufacturing defects.
🔨 Warranty does not cover:
✔ Physical damage
✔ Incorrect installation
✔ Improper usage
✔ Damage caused by external factors
🔨 Keep purchase information for warranty support.
Notes
💡 Confirm your door thickness before installation. This lock supports 35–65mm doors.
💡 Professional installation is recommended for proper operation.
💡 Keep mechanical emergency keys in a safe place.
💡 Replace batteries when low voltage warning appears.
💡 Fingerprint recognition performance may vary depending on finger condition.
💡 Optional versions available:
✔ TT Lock Bluetooth
✔ TT Lock WiFi
✔ TUYA WiFi
✔ Remote Control Version
💡 Remote control function is optional.
