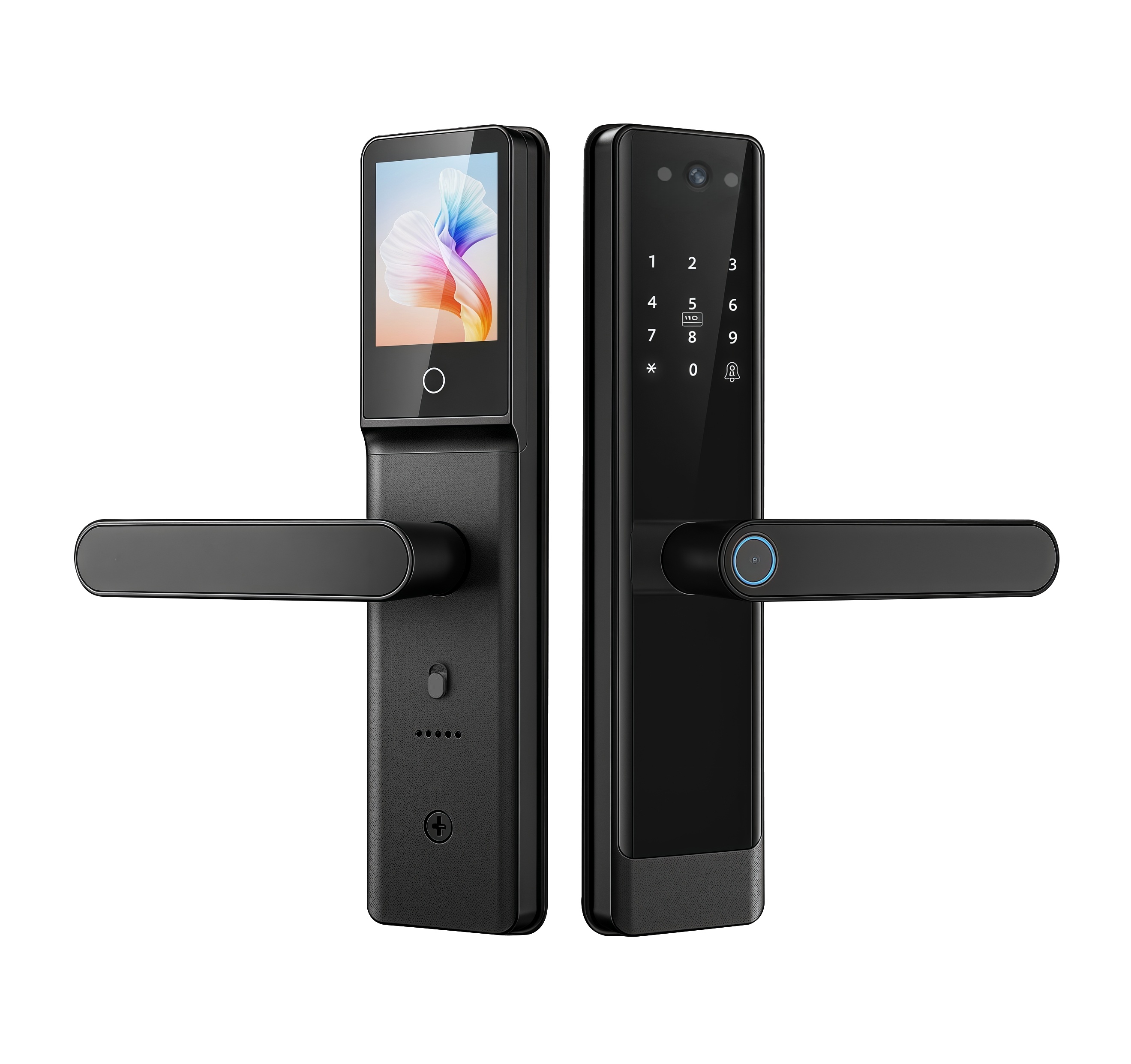

ShieldX WiFi Fingerprint Door Lock Tuya App – 10 Unlock Options SI-A10
Product Details & Description
The One Turn Room Door Lock SI-A10
is a multifunctional smart lock solution designed for convenient and secure
access control.
This smart lock supports fingerprint
recognition, PIN password, M1 card, mechanical key, WeChat Mini Program
temporary access, and remote unlocking through mobile applications. Optional
versions include camera monitoring and face recognition functions.
Featuring a military-grade free-standing handle, multilingual system support, touch keyboard, placeholder password protection, tamper-proof alarm, and internal deadbolt function, the 0205 model provides advanced security features for homes, apartments, hotels, offices, and smart rooms.
Key Features
| Category | Key Features |
| Unlocking Methods | • Face recognition • Fingerprint • PIN password • M1 card • Mechanical key • WeChat Mini Program • Remote unlock via Tuya App • USB • Camera (Optional) |
| Smart Versions / Options | • Basic Standalone Model • Bluetooth-enabled Model • Basic Model + Tuya WiFi • Camera Model (Tuya Snapshots) • Face Recognition Model |
| Build & Design | • Aluminum alloy lock case for durability • PC/Tempered glass touch panel design • Military-grade free-standing handle • Reversible installation (supports left and right without handle direction distinction) |
| Security & Protection | • Touch keyboard password input • Placeholder password function for enhanced security • Tamper-proof alarm system • 3 consecutive incorrect inputs trigger an alarm • 5 incorrect attempts lock the system • Internal deadbolt function • Strong electromagnetic interference resistance |
| Data & Records | • Door opening record storage (500+ records) |
| Language Support | • Multilingual operation (Chinese, English, plus 12 additional languages) |
| Power & Emergency | • Quick open function • Emergency access support: Mechanical key and DC 5V Type-C emergency power supply |
Technical Specifications
| Category | Specification Details |
| General Information | • Product Name: One Turn Room Door Lock • Product Model: SI-A10 • Color: Black • Dimensions: – Front: 289 × 69 × 74mm – Rear: 289 × 69 × 75mm |
| Build & Hardware | • Lock Case Material: Aluminum Alloy • Touch Panel Material: PC / Tempered Glass • Surface Treatment: Oxidation, Screen Printing, Powder Coating • Handle Type: Military-grade Free-standing Handle • Handle Lifespan: ≥100,000 Times • Lock Body Compatibility: 50 Series, 85 Series (4085 Lock Body or above), 72 Series, 68/24×240 Lock Body, 6085 Lock Body, 4558 Lock Body • Suitable Door Thickness: 30–65mm (Extension accessory kit available upon request) |
| Access & System | • Activation Methods: Face Recognition (Optional), Fingerprint, PIN, Card Swipe, Key, WeChat Mini Program, Remote Unlock via App • System Language: Chinese, English, 12 Languages • Door Opening Log: 500+ records |
| Capacity | • Administrator Group: 9 • User Group: 191 • Fingerprints: 50 • Face Registration: 100 Faces • Card Type: M1 Card • Password Keypad: Touch Keyboard (6–12 Digits) |
| Components & Hardware Tech | • PCB Solution: Seven-Core (Multilingual) • Facial Recognition Module: Fushi 3608C • Fingerprint Reader: Ouvix VB2014 • DC Motor: Zhiwangtong Technology • False Rejection Rate (FRR): <0.1% • False Recognition Rate (FAR): <0.005% |
| Power & Electrical | • Power Supply: 2500mAh Lithium Battery (for Camera/Face Recognition Model) • Operating Voltage: – Basic Model: DC 4.8V–6V – Camera Model: DC 6.8V–8.4V • Emergency Power: DC 5V Type-C Interface • Low Voltage Alarm: ≤7.0V • Static Current: ≤120μA • Dynamic Current: ≤2A • Battery Life: – Lithium Battery: Capacity remains ≥80% after 200 charge/discharge cycles – Dry Battery: More than one year |
| Environmental Parameters | • Operating Temperature: -25℃ to +70℃ • Operating Humidity: 20%–90% RH |
Package Includes
●
1 × One Turn Room Door Lock SI-A10
●
Lock Installation Accessories
●
Mechanical Emergency Key
●
User Manual
●
Battery System
Delivery & Warranty
Delivery
●
Product will be securely packed
before shipment.
●
Each unit will be inspected before
delivery.
●
Delivery time depends on customer
location and shipping method.
●
Confirm door thickness and lock
body compatibility before installation.
Warranty
●
Warranty support is available for
manufacturing defects.
●
Warranty does not cover:
○
Physical damage
○
Incorrect installation
○
Improper usage
○
External damage
●
Keep purchase invoice and product
information for warranty claims.
Notes
●
This model supports door thickness
30–65mm.
●
Face recognition and camera
functions are optional versions.
●
Tuya WiFi, Bluetooth, and remote
unlocking features depend on selected model version.
●
Smart camera features are
available only on camera/face recognition models.
●
Keep mechanical emergency keys in
a safe place.
●
Replace or recharge battery
according to the selected model specification.
●
Professional installation is
recommended for proper operation.
●
Smart door viewer optional
specifications:
○
Display Size: 2.8-inch peephole
display
○
Camera: One million pixels
○
Viewing Angle: 120°
○
Resolution: 240×320
○
Remote Capture Support
Remote Unlocking Support
