Category

Feature

Specification / Detail

Unlocking Methods

Multiple Options

Facial Recognition, Palm Vein Recognition, Camera Monitoring, Fingerprint Unlock, Password Unlock, IC Card Unlock, Mechanical Key Unlock, Mobile App Unlock, Temporary Password Unlock, Remote Control (Optional)

Advanced Biometric Security

Facial Recognition Module

EWA

Fingerprint Reader

Guokewei

Face Registration Capacity

100 Faces

Total User Capacity

300 Users

Access Management

Fingerprint and password access management

Smart Camera & Display

Camera & Display

One Million Pixel Camera, 4.5-inch Camera Display

Resolution & Angle

Resolution: 480 × 854, Viewing Angle: 120°

Smart Functions

Remote Unlocking (Supported), Active Intercom (Supported), Remote Capture (External doorbell system automatically captures and uploads images)

Smart Security Features

Locking & Mechanism

Fully automatic locking system, Internal deadbolt function, Auto-lock function, Quick open function

Protection & Alarms

Tamper-proof alarm, Password protection (Alarm after 3 consecutive incorrect inputs, system locks after 5 attempts), Placeholder password support

System Logs & Resistance

Door opening records: 1000 Logs, Strong electromagnetic interference resistance

Battery & Emergency

Power System

Lithium battery power system

Battery Capacity

Main power supply: 5000mAh Lithium Battery, Battery capacity: 4200mAh Lithium Battery

Battery Life

Normal continuous operation for 5,000 times

Emergency Features

Emergency power: DC 5V Type-C Interface, Emergency unlocking: Mechanical key & emergency power supply

Category

Specification

Details / Parameters

Basic Information

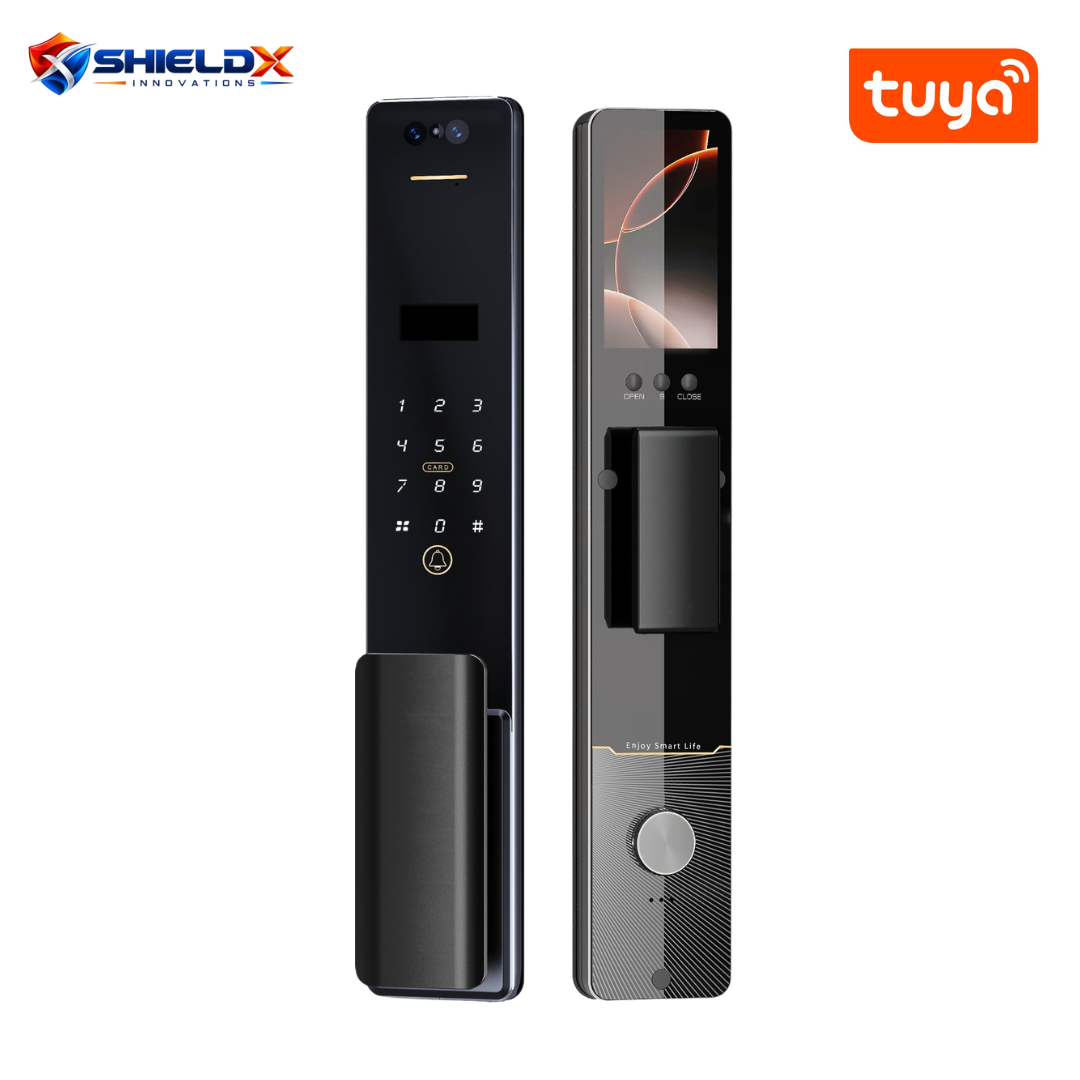

Product Name

3D Face Recognition Smart Lock Lock

Product Model

SI-X09

Lock Case Material

Aluminum Alloy

Touch Panel Material

Tempered Glass

Color

Grey

Surface Treatment

Oxygen Anodizing, Laser Engraving

Handle Type

Straight Handle

Handle Direction

Universal (No distinction between left and right; Right-hand opening by default)

Dimensions

Front Panel

420 × 78 × 57 mm

Back Panel

420 × 72 × 61 mm

Power Specifications

Operating Voltage

DC 6.9V – 8.4V

Auxiliary Voltage

DC 5V Type-C Interface

Low Voltage Alarm

≤ 6.9V

Static Current

≤ 180μA

Dynamic Current

≤ 5A

DC Motor

Dongshunda Electric Motor

User & Password Specifications

Password Length

6 – 12 Digits

Password Keypad

Touch Keyboard

Start-up Method

Radar Detection

Placeholder Password

Supported

Card Type

IC Card

Operating Environment

Operating Temperature

-25℃ to +70℃

Operating Humidity

20% – 90% RH

Lifespan

Handle Opening & Closing Lifespan ≥ 100,000 Times

Accuracy Rates

False Rejection Rate: < 0.1%

False Recognition Rate: < 0.005%

Smart Door Viewer

Display & Camera

4.5-inch Camera Display, One Million Pixels

Viewing Angle & Resolution

Viewing Angle: 120°, Resolution: 480 × 854

Remote & Interactive Features

Remote Unlocking: Supported

Remote Capture: External doorbell automatically captures and uploads images

Active Intercom: Supported

Lock Body Specifications

Supported Lock Bodies

• 68 Series

• 85 Series (Universal Back Plate)

• 72 Series (Universal Back Plate)

• Turkey 6085 (Universal Back Plate)

• Israeli Lock Body (Universal Back Plate)
